JIRA Worklogs Bot – System Design Document

A Microsoft Teams bot that simplifies JIRA time tracking for engineering teams

Background
Design Goals
System Context

Implementation Components
Integration Points
Dependencies
Code Quality

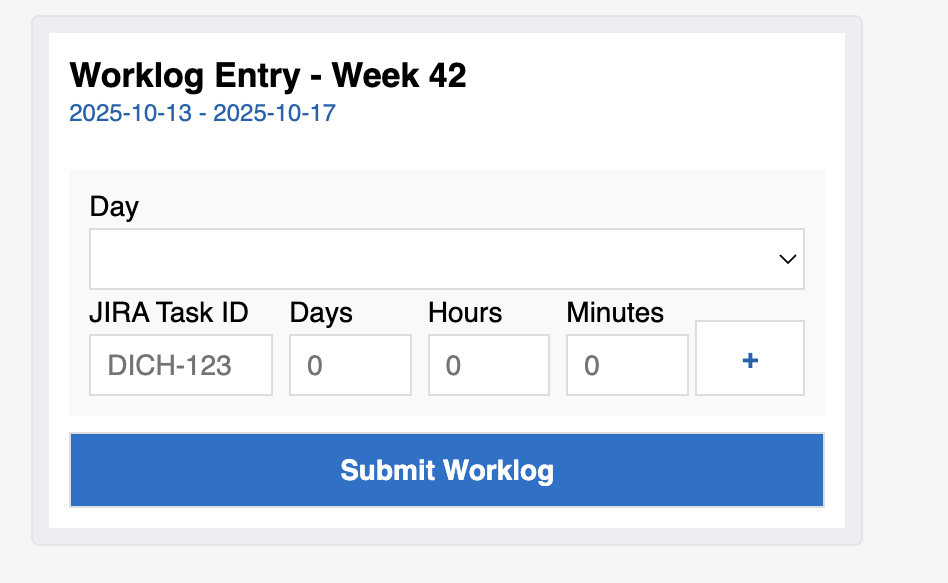

Proposed Adaptive Card Interface
Design Decisions
Data Flow: Submitting a Worklog
Technical Deep Dive

Data Models
API Contract: What the Adaptive Card Submits
State Management: Add Row Interactions
Error Handling Strategy

Known Limitations
Failure Modes
Thinking Beyond the MVP
Lessons Learned
Appendix: Load Simulation Details

Background

The idea for this project came from a weekly grappling with submitting time reports in JIRA Worklogs. The UI/UX is clumsy and maddening, and I strongly think that it’s counterintuitive to how someone would input their time report.

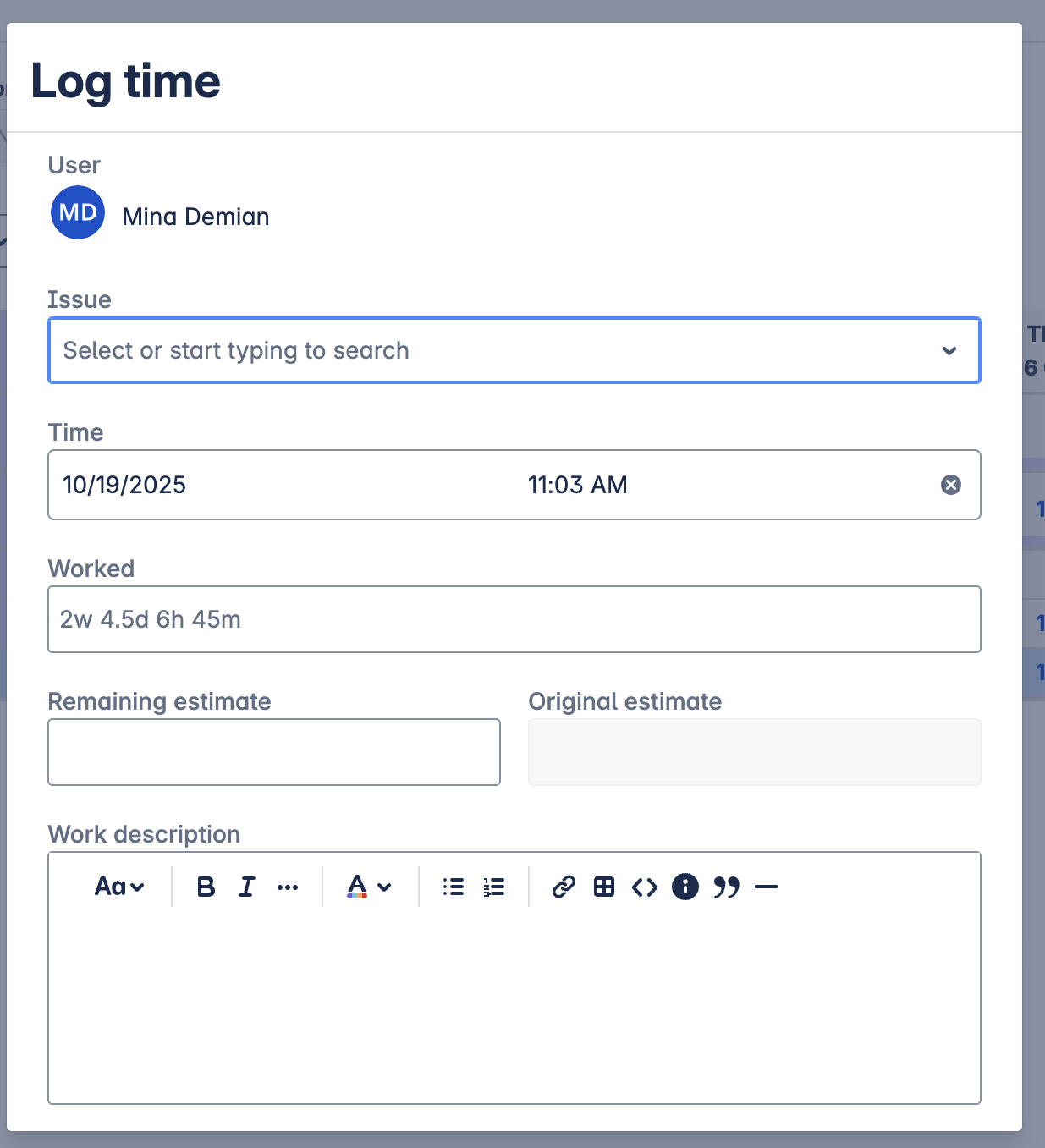

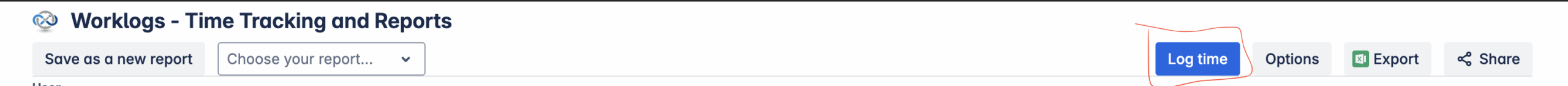

Once you click on “Log Time”, you are presented with this view. Nothing wrong with the view on its own, but I have to repeat this process, especially if I’ve worked on several tasks across different projects or initiatives.

Design Goals

The main solution design goals for this project are:

Simplicity: The new interface should communicate to the user that there will be no new screens or modal.
Efficiency: The new interface should allow the user to add in their entire week’s time report in one view and then click the submit button once!
Minimal Context Switch: Making it work within Teams is minimal barrier to entry, since we live and work within Teams already.

System Context

Implementation Components

Microsoft Teams Bot: A simple Adaptive Card implementation within Microsoft Teams that allows users to log their time reports quickly.
Spring Boot 3: Deployed as a Lambda function in AWS, the application handles the backend logic for processing time reports.

Integration Points

Microsoft Teams: Bot Framework SDK 4.x, Adaptive Cards 1.5
JIRA Cloud: REST API v3 (worklog endpoints)
AWS: Lambda (Java 17), API Gateway (REST), Secrets Manager

Dependencies

External: JIRA Cloud availability (SLA unknown)
Internal: Bot Framework token service (Azure)

Code Quality

unit test coverage
initial CI/CD pipeline in place (GitHub Actions)
[coming soon] Qodana static analysis

Proposed Adaptive Card Interface

Design Decisions

To avoid further setup with Task Modules in Teams, I opted for Adaptive Cards to keep the implementation simple and straightforward. Task Modules would have added complexity without significant benefit for this use case and it would have made it harder for someone else to maintain in the future.
Java is the preferred programming language at Cabonline, so I went with that!
I opted for Spring Boot, rather than Micronaut/Quarkus for Lambda because Java is the in-house language of choice and going with another technology (albeit cool!) would have added unnecessary complexity.
Although the documentation suggests and encourages the use of Azure Functions for serverless applications, I chose AWS Lambda due to Cabonline’s commitment to AWS.

Data Flow: Submitting a Worklog

User types “hello” → Teams sends Activity to /api/messages
Bot responds with Adaptive Card (pre-filled with current week)
User fills JIRA ID, hours → Clicks “Submit”
Bot receives Action.Submit → Extracts WorklogEntry[]
For each entry:
- Validate JIRA ID format
- Call JIRA API: POST /issue/{id}/worklog
- Track success/failure
Respond with summary: “✅ 3 submitted, ❌ 1 failed”

View the sequence diagram (Ed: WordPress doesn’t allow uploading .SVG files.)

Technical Deep Dive

Data Models

WorklogEntry

The core data structure representing a single time entry:

@Data
public class WorklogEntry {
    private String day;       // "Monday - 2025-10-13" (parsed to LocalDate)
    private String jiraId;    // "DICH-123"
    private String days;      // "0" or "1" (optional)
    private String hours;     // "2"
    private String minutes;   // "30"
}

Design Notes:

All fields are strings because Adaptive Card inputs are text-based
The day field contains both day name and ISO date for readability
Numeric fields are parsed to integers in JiraClient.calculateTimeSpentSeconds()
Empty strings default to “0” when calculating time

JIRA Worklog Payload

Transformed from WorklogEntry before submission:

{
  "timeSpentSeconds": 9000,
  "started": "2025-10-13T00:00:00+02:00"
}

Calculation: (days × 28800) + (hours × 3600) + (minutes × 60)

API Contract: What the Adaptive Card Submits

When a user clicks “Submit Worklog”, Teams sends an Action.Submit activity to /api/messages:

Bot Framework Activity Structure:

{
  "type": "invoke",
  "name": "adaptiveCard/action",
  "value": {
    "action": "submit",
    "day_1": "Monday - 2025-10-13",
    "jira_1": "DICH-123",
    "days_1": "0",
    "hours_1": "2",
    "minutes_1": "30",
    "day_2": "Tuesday - 2025-10-14",
    "jira_2": "PROJ-456",
    "days_2": "",
    "hours_2": "3",
    "minutes_2": "15"
  }
}

Extraction Logic:
The extractWorklogEntries() method loops through rows:

int rowNum = 1;
while (actionData.containsKey("jira_" + rowNum)) {
    String jiraId = actionData.get("jira_" + rowNum);
    if (jiraId != null && !jiraId.trim().isEmpty()) {
        // Create WorklogEntry
        entries.add(entry);
    }
    rowNum++;
}

Key Behaviors:

Stops when jira_N key is missing (no fixed row limit)
Skips rows with empty JIRA IDs
Defaults empty numeric fields to "" (converted to 0)
Validates total time > 0 before submitting

State Management: Add Row Interactions

Challenge: How do you add rows dynamically while preserving user input?

Solution: Stateless Client-Side State

The “+” button in each row contains:

{
  "type": "Action.Submit",
  "title": "+",
  "data": {
    "action": "addRow",
    "rows": 1
  }
}

When clicked:

Extract current state: Loop through all day_1, jira_1, hours_1, etc. in the submitted data
Increment rows: newRows = currentRows + 1
Clone card template: Generate card with N+1 containers
Pre-fill data: Re-populate all existing fields with their previous values
Update message: Use Bot Framework’s updateActivity() to replace the card in-place

Code Flow:

// Extract ALL form data
Map<String, Object> existingData = new HashMap<>();
for (Map.Entry<String, Object> entry : actionData.entrySet()) {
    if (key.startsWith("day_") || key.startsWith("jira_") ||
        key.startsWith("hours_") || key.startsWith("minutes_")) {
        existingData.put(key, entry.getValue());
    }
}

// Create new card with N+1 rows
Attachment updatedCard = createWorklogCard(newRows, existingData);

// Update the existing message
Activity updateActivity = MessageFactory.attachment(updatedCard);
updateActivity.setId(activity.getReplyToId());
turnContext.updateActivity(updateActivity);

Why This Works:

✅ No server-side session storage needed
✅ Each interaction is self-contained
✅ Teams handles the UI update seamlessly
✅ Survives Lambda cold starts (stateless)

Limitations:

Can’t recover if user closes Teams (state is ephemeral)
Card update fails if original message is deleted
Maximum payload size limited by Bot Framework (~25KB)

Error Handling Strategy

Current Implementation:

Error Scenario	Behavior	User Feedback
JIRA API returns 4xx	Mark entry as failed	“❌ Failed to submit: PROJ-123”
JIRA API returns 5xx	Mark entry as failed	“❌ Failed to submit: PROJ-123”
Network timeout	Exception caught, marked failed	“❌ Error submitting worklog: timeout”
Invalid date format	Skip entry	“❌ PROJ-123 (invalid date format)”
Time = 0 seconds	Skip entry	“❌ PROJ-123 (no time specified)”
Empty JIRA ID	Skip during extraction	Not included in submission

Response Structure:

✅ Successfully submitted:
* DICH-123 - 2025-10-13 (2h 30m)
* PROJ-456 - 2025-10-14 (3h)

❌ Failed to submit:
* PROJ-789 (invalid date format)
* PROJ-999

Future Improvements (V2):

Exponential backoff retry for transient failures
Queue failed submissions for later retry
Validate JIRA task IDs before submission (autocomplete)
Distinguish between client errors (4xx) and server errors (5xx)

Known Limitations

To ship a first version quickly, I opted to keep the JIRA Task ID as a free text input. This means that users need to know the Task IDs beforehand. The next version will integrate with the JIRA API to search for task IDs, as it does right now in JIRA Work Logs.
The current implementation does not support editing or deleting previously logged time entries. Future versions will allow you to view, edit, and delete past entries.
The current implementation does not yet implement an OAuth2 flow for authenticating with JIRA. This is a critical feature that will be added in future versions to ensure secure access to JIRA accounts.

Failure Modes

Failure	Impact	Mitigation
JIRA API down	Worklogs not logged	Retry with exponential backoff, queue for later
Lambda cold start	Slow response	CloudWatch warming (implemented)
Invalid Task ID	User frustration	Better validation + JIRA autocomplete (future)
Concurrent edits	Race conditions	Not applicable (append-only worklogs)

Thinking Beyond the MVP

The JIRA Worklogs API at Cabonline is usually not heavily loaded, except for Fridays when reminders are sent out to submit time reports. This means that concurrent users would be low.

We can think about it then as a theoretical load spike on the backend Java service handling JIRA Worklog submissions from Microsoft Teams. The following graph shows the steady weekday load with the recurring Friday spike (11:00–17:00).

Performance SLOs

Metric	Target	Rationale
P50 latency	< 500ms	Human perception threshold
P99 latency	< 2s	Acceptable for batch submission
Availability	99.5%	Weekly tool, not mission-critical
Error rate	< 1%	JIRA API reliability driven

Visualizing the Load Spike

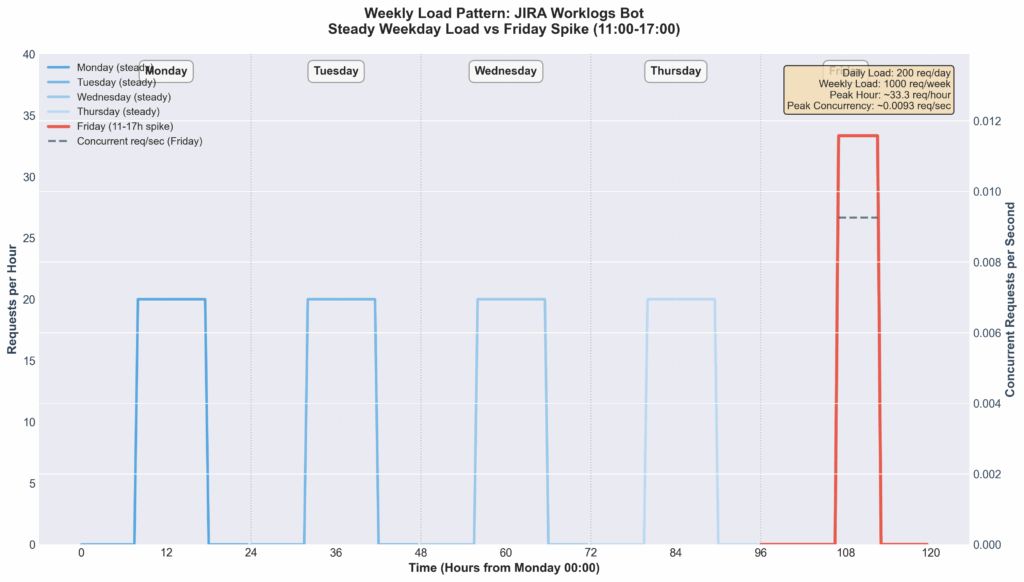

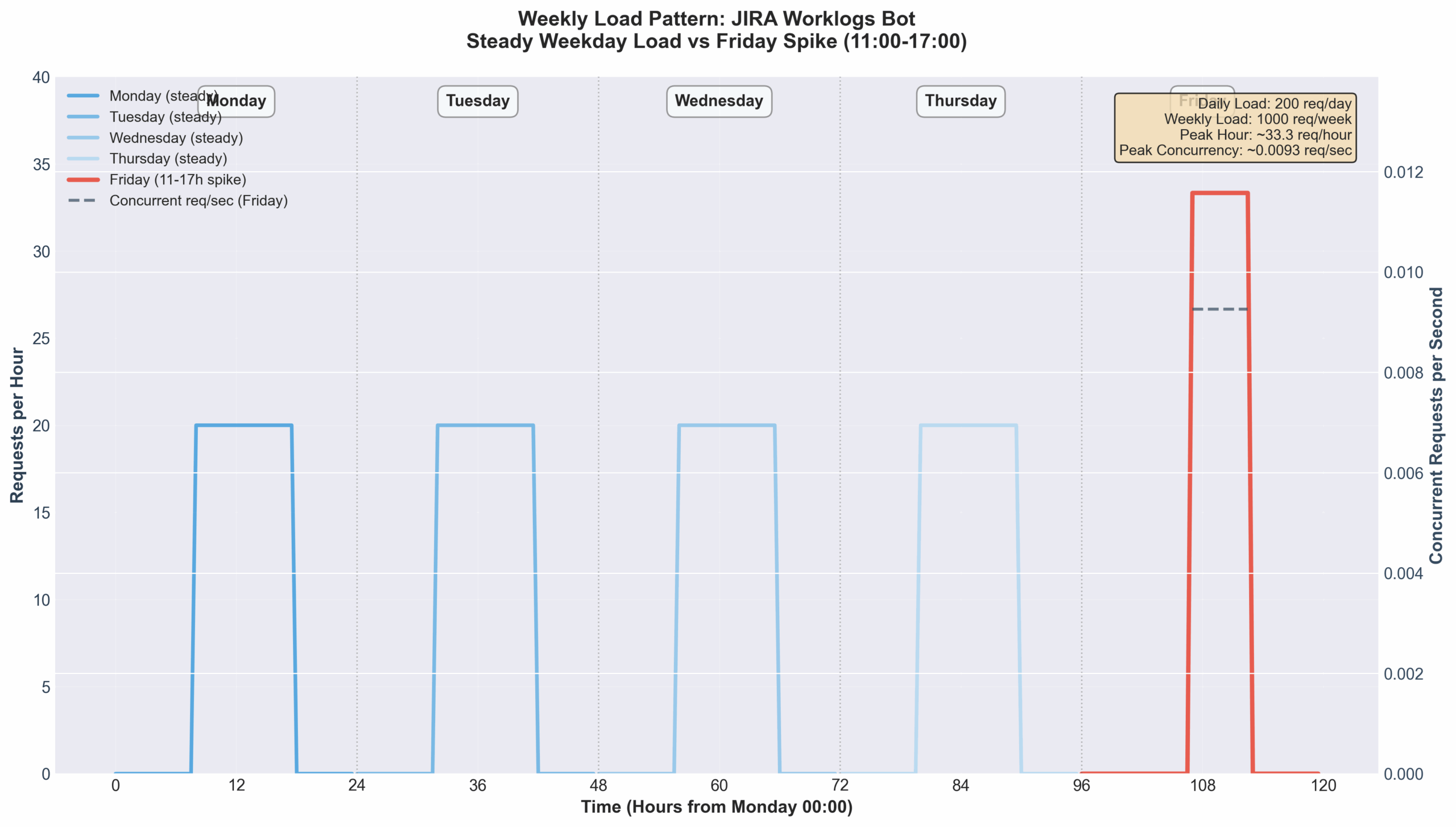

Weekly Load Context — including Friday concurrency overlay

Blue–Purple lines: Steady weekday load (Mon–Thu)
Red line: Friday load spike (11–17h window)
Dashed black line: Concurrent Friday requests per second (secondary axis)

Architectural Implications

Given this traffic pattern:

Cost will be essentially zero (fractions of a cent per week).
Scaling is handled automatically.
Cold starts are not an issue because the traffic pattern is predictable (Friday midday burst). A CloudWatch Scheduled Event can be set up at 10:55.

AWS Resources Needed

1 Lambda function
1 API Gateway route (POST /worklog)
[Optional] CloudWatch event rule to wake the function before load time.

Production Readiness

[x] Logging & monitoring strategy
[x] Load testing (simulation included)
[ ] OAuth implementation
[ ] Secrets management (AWS Secrets Manager)
[ ] Incident response runbook
[ ] Rollback procedure

Evolution: From MVP to Production

V1: MVP (Current)

✅ Single-tenant (Cabonline only)
✅ Basic Auth (hardcoded token)
✅ Free-text Task IDs
Trade-off: Security & UX for speed to production

V2: OAuth & Autocomplete (Planned)

🔄 Multi-user OAuth flow
🔄 JIRA Task ID search/autocomplete
Trade-off: Complexity vs. user experience

Lessons Learned

What Went Well

Adaptive Cards are surprisingly powerful for complex forms
Spring Boot’s dependency injection made testing easy
Load analysis prevented over-engineering

Appendix: Load Simulation Details

Interpretation

Regular load Monday–Thursday is evenly distributed (~200 req/day).
Friday sees concentrated activity late morning through afternoon.
Peak ≈ 56 requests/hour (~0.016 req/sec).
Backend can comfortably handle this within a single instance.

Assumptions

Parameter	Symbol	Value	Description
Engineers	E	20	Active engineers using the bot
Tasks per engineer per day	T	10	Average number of worklog entries per engineer per day
Working days	D	5	Monday–Friday
Spike window	—	6 hours	11:00 → 17:00 on Fridays

Equations

Daily Submissions:
$$R_{day} = E \times T$$

Weekly Submissions:
$$R_{week} = R_{day} \times D$$

Peak-Hour Load (Friday spike period):
$$R_{hour_peak} = \frac{R_{day}}{6}$$

Average Concurrent Requests (per second):
$$R_{sec_peak} = \frac{R_{hour_peak}}{3600}$$

Substituted Values

Metric	Formula	Result
Total daily submissions	R_day = 20 × 10	200 requests/day
Total weekly submissions	R_week = 200 × 5	1,000 requests/week
Peak-hour load (Friday 11–17)	R_hour_peak = 200 / 6	≈ 33.3 req/hour
Peak concurrency	R_sec_peak = 33.3 / 3600	≈ 0.0093 req/sec
